۲.۴۵۰.۰۰۰ تومان
2 در انبار

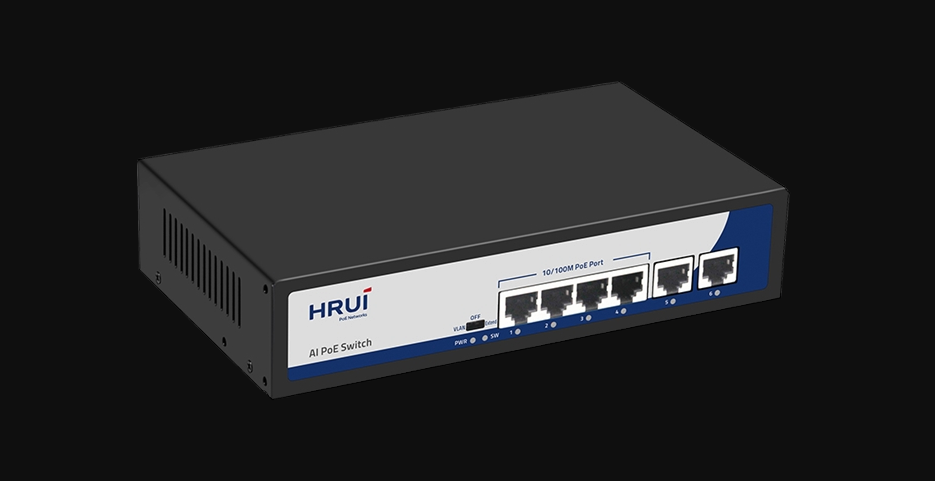

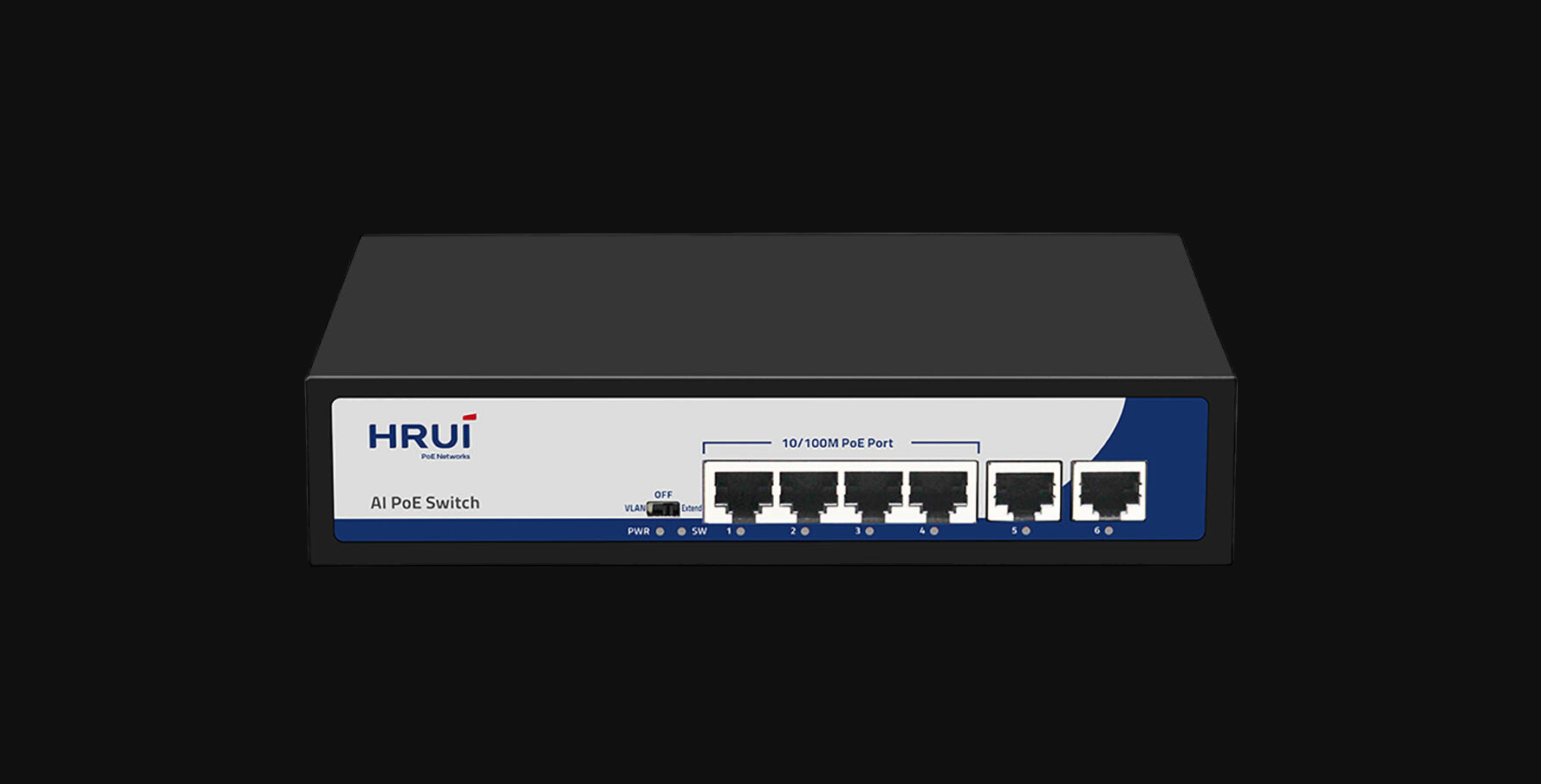

– سوئیچ 4 پورت 10/100Mbps PoE و 2 پورت 10/100Mbps Uplink
– سوئیچ PoE
– توان کل 65 وات
– 30 ماه وارانتی بی قید و شرط
این محصول یک سوییچ 4 پورت POE با سرعت انتقال 10/100 و دو پورت آپ لینک با سرعت انتقال 10/100 است.
همچینن این سوییچ از گزینه اکستند نیز برخوردار است تا هم دیتا و هم برق را بتوانید تا فواصل بیشتری ارسال بکنید.
مشخصات کامل محصول:

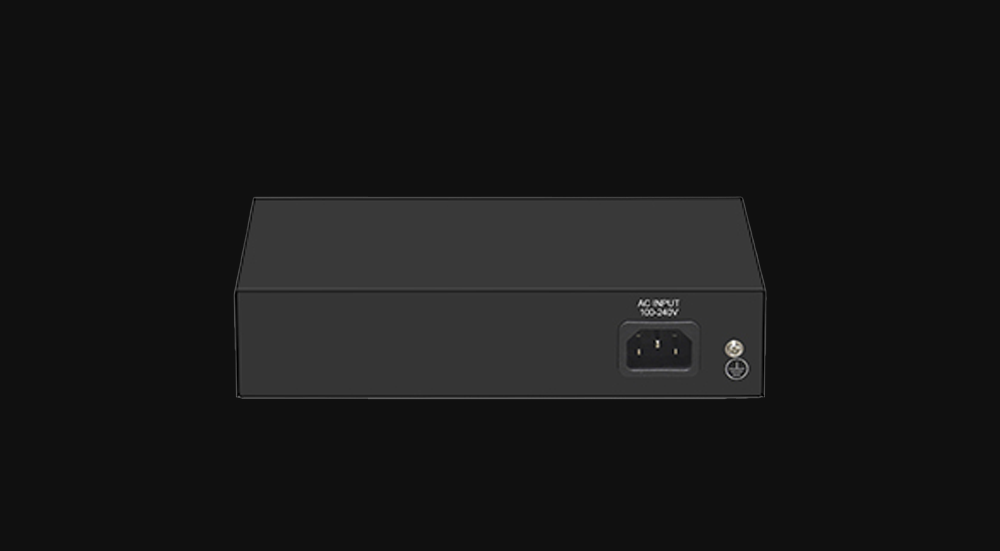

| Power | AC input (100-240 V) |
| Ethernet | 4 * Port 10/100M PoE |
| 2 * Port 10/100M Ethernet Uplink | |
| Performance | |
| Switching Capacity | 1.2Gbps |
| Throughput | 0.8928Mpps |
| Packet Buffer | 448K |
| MAC Address | 1K |
| Jumbo Frame | 2Kbytes |
| Transfer Mode | Store and forward |
| MTBF | 100000 hour |
| Standard | |
| Network Protocol | IEEE802.3 (10Base-T) |
| IEEE802.3u (100Base-TX) | |
| IEEE802.3x (Flow control) | |
| PoE Protocol | IEEE802.3af (15.4W) |
| IEEE802.3at (30W) | |
| Industry Standard | EMI: FCC Part 15 CISPR (EN55032) class A |
| EMS: EN61000-4-2 (ESD) | |
| EN61000-4-4 (EFT) | |
| EN61000-4-5 (Surge) | |
| Network Medium | 10Base-T: Cat3,4,5 or above UTP(≤100m) |
| 100Base-TX: Cat5 or above UTP(≤100m) | |
| Protection | |
| Security Certificae | CE、FCC、RoHS |
| Environment | |
| Working Environment | Working Temperature: -10~50°C |
| Storage Temperature: -40~85°C | |
| Working Humidity: 10%~90%，non-condensing | |
| Storage Temperature: 5%~95%，non-condensing | |
| Working Height: Maximum10,000 feet | |
| Storage heigh: Maximum 10,000 feet | |
| Mechanical | |
| Structure Size | Product Size: 200*118*44mm |
| Package Size: 245*190*60mm | |
| Product Net-Weight: 0.6kg | |
| Product Gross-Weight: 0.9kg | |
| Packing Info | MEAS: 505*320*400mm |
| Packing Qty: 20 unit | |
| Packing weight: 19 KG | |
| Power Voltage | Input Voltage: AC 100-240 V |
| Output Voltage: 52V1.25A | |
| Package List | Switch 1 pcs, Power cord 1 pcs, User manual 1 pcs, Certification 1 pc |
| Indication | |
| DIP Switch | VLAN: Port isolation mode. In this mode, the PoE ports (1-4) of the switch cannot communicate with each other, and can only communicate with the UP-link port. The port AI mode is turned on |
| OFF: Normal mode, all port can communicate with each other, the transmission distance is within 100 meters, the transmission rate is 10M/100M adaptive; The port AI mode is closed | |
| Extend: Link extension mode, 1-4 ports PoE power supply and data transmission distance can be extended to 250 meters, the transmission rate becomes 10M, and the port AI mode is turned on | |
| LED Indicators | PWR、SW、1-6 Link |
